NOTICE: All suggestions made for installation in this thread are for professional electrical installers and for off road use only. Any modifications will not be covered by the dealer warranty nor will any warranty be given by newcelica or hombredelassrta. Neither newcelica nor hombredelassrta will be responsible for any damage done to the vehicle after following the suggestions in this thread.

Improved Clock Color Change Mod

Most people are unhappy with your current clock color. 00-02 clocks can do the filter trick in the installs but it will be very dim during the day and pretty dim at night. Those with 03-05 clocks are stuck with either orange or red because the lens is orange. So here is what i did. I took off the whole lends from the front of the clock. The lense is held in by 4 pegs of plastic that just need to be dremmeld out to get the lens off. Now u will have a light green lcd with a nice looking black surround. So u can now do the filter trick.

This is the clock when out of the housing



now unscrew the 3 small screws in the back. They are very tiny so may need glasses screwdriver to get them out:




Use a dremmel or small drill. There are 4 pegs in the back that are expanded plastic. To get these out, drill the plastic out of it until its loose. The 2 in the middle are deep in, therefore hard to get to. Get a long bit do get it out. Try not to dril to deep so to keep the lense intact, and keep the black plastic housing intact. Also be carefull with the clock itsef.




Once you get the lense out it should look like this (without the hole in the center. That was my first attempt to brighten the lense up
You dont need this anymore but can keep it and glue it back on later if u dont like how the clock looks
Now this part you need ot use whatever celophane colors u need ot make the color u want. The actual clock is a light green color. To get a nice bright blue use 1 purple filter and 2 blue filters.

Simply cut the filters and place as shown here:



Now put everyhting back together and it should look something like this:









THIS IS THE INSTLAL FOR TEHE CELPPHANE



I have found that practically any color can be had using the green clock. It’s just a matter of combining the correct combination of filters to achieve the desired shading. The key matching the blue of the cluster and radio LEDs is filtering out the green light using a purple filter. This will give the clock a light blue illumination. To get a medium blue illumination, layer a blue filter over the purple filter. Many folks have tried using just blue filters which results in either a teal blue or an extremely dim blue display. The clock can even be made to illuminate white if you wish by using multiple layers of pink film. Cellophane wrapping film can be used for the filters and is available at craft or party supply stores for a whopping $1.00 per roll so start saving your dough for this one. LOL
Below is a reference pic showing some relative shadings and the filters used:






This plug is the one on the clock. Disconnect this wire if you want the clock at full brightness at all times.
PS: Sorry for the crappy pic quality. When saving them from a word doc i lost hte origonal pics and they turned out like these

Also i cannot take full credit as somone did the filter writeup a long while back on another site.




UPDATE:

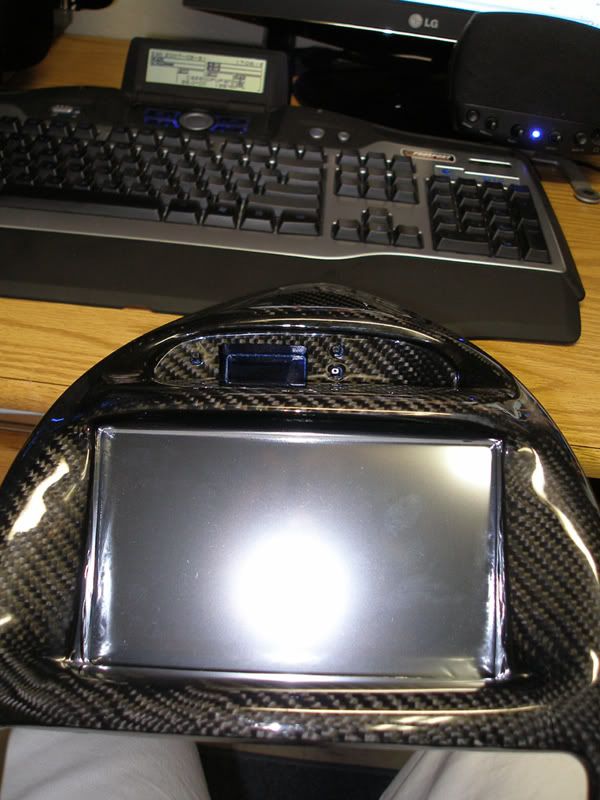

I eventually covered the opening with a Kenny Heiser carbon fiber Clock face (no longer available) but you can make something similar







·
Registered
Joined
·
14,069 Posts
Discussion Starter #3
not really a badass but . . . any craft store should have it, also party stores. i used clear colored folder/binders from target ;)


·
Premium Member
Joined
·
2,209 Posts

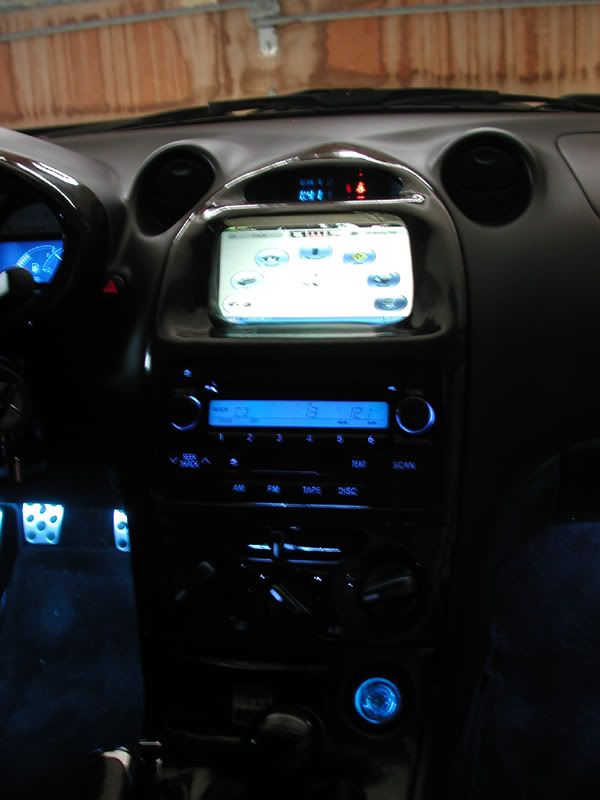

Just did mine looks great during the day!!

All there is to it is that since you take off the outside plastic where it says passenger etc leaves a gap between the clock and the clock mounting.. Apart from that its great!

Well done dan!


·
Registered
Joined
·
69 Posts
great write up!
it looks great

any idea how to fix it so that its bright during the day?
the glare causes the time to look like 88:88


·
Registered
Joined
·
14,069 Posts
Discussion Starter #6
awsome glad it still helping. did this a long while ago but never posted it up on here


·
Registered
Joined
·
69 Posts
yea bro thats a bad ass car u got there
u figure out how to get rid of the glare tho?


·
Registered
Joined
·
69 Posts
im using those folders that are like plastic ish
its just not as bright as it could be in teh day time
i have to reallyyy look into it to get the time


·
Registered
Joined
·
69 Posts
whats the proper stuff?
its still blue
but in direct sunlight i dont see anything but 88:88


·
Registered
Joined
·
130 Posts
I tried this on my 00 celi. Was aiming for a blue color, and although at night its pretty close to blue its really dim. Durring the day i cannot even see the clock. Yes i cut the dimmer wire. Im thinking the purple celo might be just too purple and its blocking out to much light. If any1 has a better idea let me know, id really like for this mod to work but atm im pretty dissapointed with my result.


·
Registered
Joined
·
14,069 Posts
Discussion Starter #15
if you rear through the mod you will see that to overcome the dimness i simply cut off the front lense


·
Registered
Joined
·
130 Posts
Ahh of course i see now, i feel like an idiot hehe. After removing that lense do you feel it cheapens the look at all by not having that smooth look? And once you take it out is it possible to put the lense back on?


·
Registered
Joined
·
386 Posts
i took it off and imo it looks better. no one would ever be able to tell if you didnt tell them, unless they had a celi

you can put it back on if you choose to but it blocks to much


·
Registered
Joined
·
130 Posts
Yeah ill work on it this weekend and do it. I spose if im really unhappy i can glue it back on or something. Ill post a pic when its done.


·
Registered
Joined
·
69 Posts
how did u chagne ur cigarette lighter light to blue?
